Cast iron

Cast

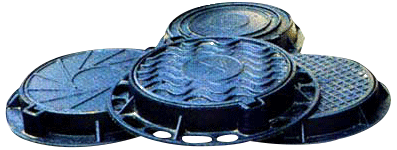

Hatch Light/Medium/Heavy

Name	Diameter mm.	Height mm.	Body kg.	Lid kg.
Light hatch	770	90	37	30
Hatch Medium	870	120	47	47
Hatch Heavy	870	120	58	62

Purpose: Cast iron hatches for inspection wells are intended for installation on wells water supply and sewerage networks:

in a green area, pedestrian area (light hatch) LYUKL (A15)-VK-1-60

parking lots, sidewalks and roadways city parks (middle hatch) - LUX (B125)-VK-1-60

on city roads with heavy traffic (heavy hatch) - LYUKT (S250)-VK-1-60 DSTU B.V. 2.5-26:2005(GOST 3634-99

Casting

Anti-vandal hatch

Name	Length mm.	Width mm.	Height mm.	Body kg.	Lid kg.
Anti-vandal hatch	830	830	125	66	84

Purpose: Cast iron hatches for inspection wells with a locking device are intended for installations on urban roads with heavy traffic - LYUK T (S250)-VK-6-64x64 DSTU B V. 2.5-26:2005 (GOST 3634-99). Nominal load 250 kN (25.0 tf)

Casting

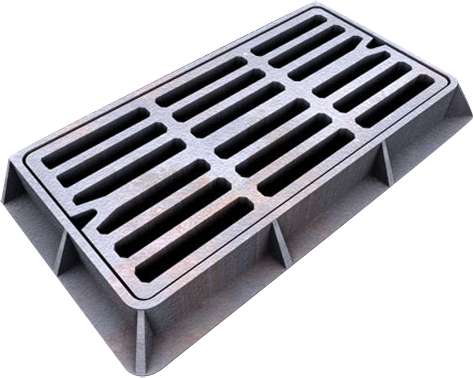

Storm drains

Name	Mass kg.	Length mm.	Width mm.	Height mm.	Live cross-sectional area 0.28 m2	Slot area %
Storm drain	119	915	570	120	0.28	50
Storm drain	95	740	400	80

Purpose: storm water inlets and storm water wells are designed to receive surface water wastewater from streets, courtyards and other areas. Storm water inlets are installed in parking lots and roadway of city roads.

Casting

Benches

Name	Length mm.	Width mm.	Height with backrest mm.	Mass	Leg mass
Park bench	1750	550	800	65	23

Purpose: park benches, consisting of two legs, made of cast iron SCH 18 with seat and backrest made of wood. Benches are intended for equipping recreation areas in country houses. areas, car parks, children's and school playgrounds, vehicle stops, etc.
