| Part name | Mass kg. | Length mm. | Height mm. | Width mm. |
|---|---|---|---|---|
| Friction wedge | 15.8 | 212 | 186 | 190 |
The friction wedge is made by casting from gray cast iron grade SCH350 DSTU 8833:2019 “Casting from gray cast iron with flake graphite. General technical conditions”, has a hollow body. At production does not require thermal or mechanical treatment.
Kit includes:
Friction wedge
Passport - for shipping batch
Certificate of Quality
Certificate of Conformity

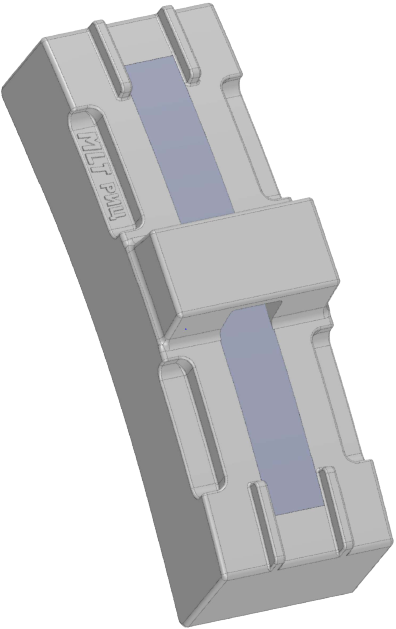

| Part name | Mass kg. | Length mm. | Width mm. | Height mm. |
|---|---|---|---|---|
| M type brake pad | 14.7 | 340 | 158.5 | 97 |
The frame (back) and bracket of the last are made of strips. The back of the block must be flush with the surface of the block mating with the shoe and must be visible

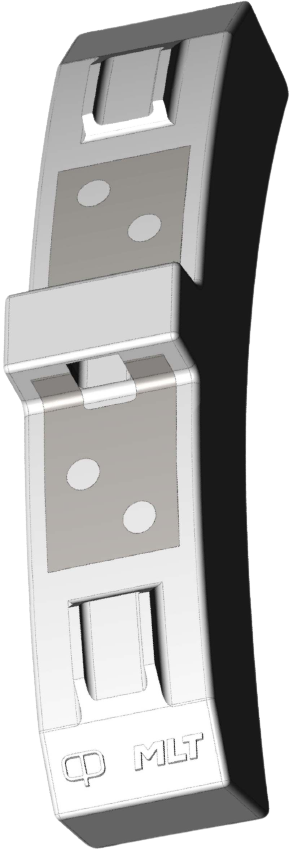

| Part name | Mass kg. | Length mm. | Width mm. | Height mm. |
|---|---|---|---|---|
| F-type brake pad | 14.6 | 408 | 80 | 125 |
The pads are made by casting cast iron, the chemical composition of which must comply with the standards specified in the drawing LK 175-00M. The block must have a steel frame, which must be poured in level with the surface of the block and must be visible

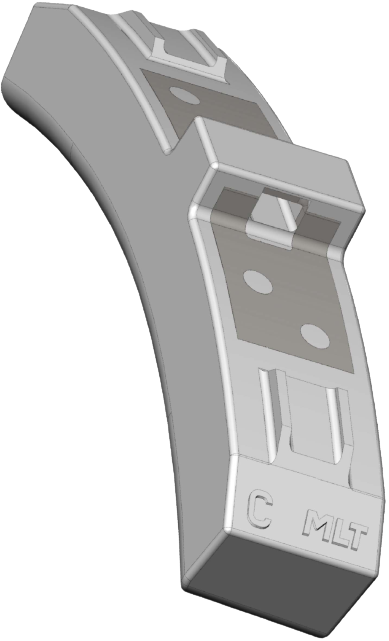

| Part name | Mass kg. | Length mm. | Width mm. | Height mm. |
|---|---|---|---|---|
| C-type brake pad | 14.8 | 408 | 80 | 125 |
The pads are made by casting from cast iron, the chemical composition of which must comply with the standards specified in TU U 30.2-39195133-006:2023. The block must have a steel frame, which must be poured flush with the surface of the block and must be visible between the eye and the guides
Kit includes:
Brake pad
Passport - for the shipping batch of pads
Certificate of Quality
Certificate of Conformity

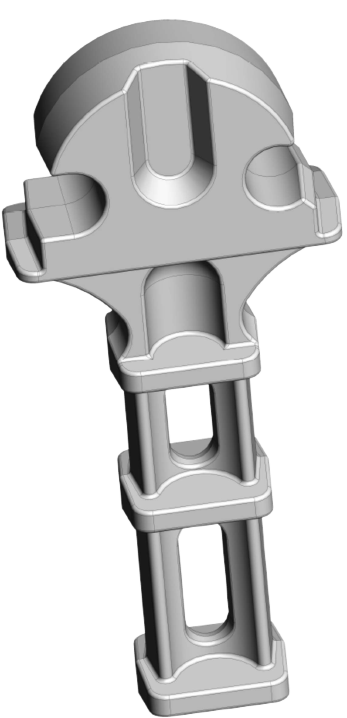

| Part name | Mass kg. | Length mm. | Width mm. | Height mm. |
|---|---|---|---|---|
| Anchor A3-1-6 | 1,3 | 185 | 88 | 44 |
The design feature of the anchors is that they are embedded in reinforced concrete sleepers
Included in kit
Mortgage anchor
Passport - for the shipping batch of pads
Certificate of Quality
Certificate of Conformity
